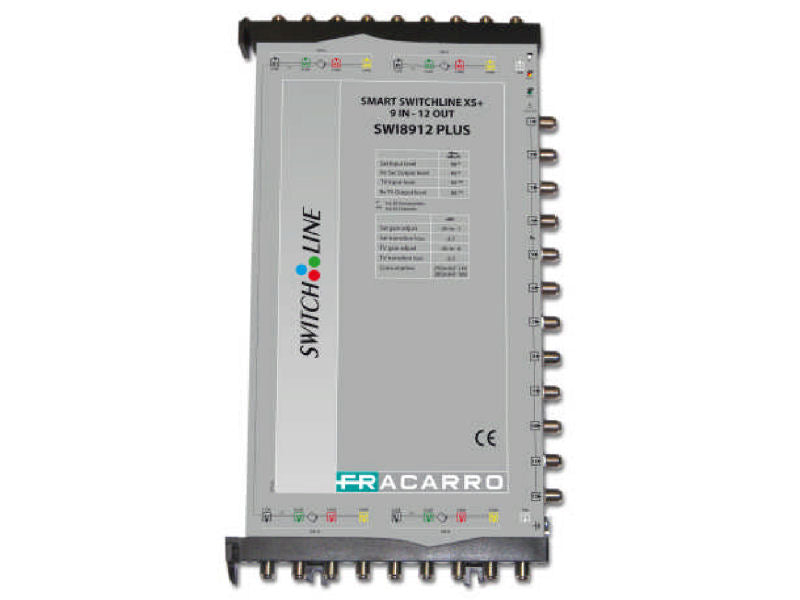

The Fracarro SWI8912+ is made to be used in a cascadeable system for medium and big installations.
It has 12 outputs and has been designed as a flexible and cost effective solution. The 3 gain adjustments (SAT A, SAT B and TV band) allows you to easily equalise the full system.
High isolation, low power consumption and HD compliance make it one of the best products you can find on the market.
Key Points
- 9 inputs (8 Satellite, 1 Terrestrial)
- 12 outputs
- 2 Satellite gain adjustment: SAT A and SAT B
- Terrestrial gain adjustment
- Isolation > 45dB
- Low power consumption
- Capable of 100m drop lengths
- Low insertion loss
- Standard colour coding
- HD compliant
- Fixed gain on return path
Satellite
Bandwidth MHz: 950-2150
Gain dB: -4 to 2
Gain adjustment dB: 15
Insertion loss dB: 2.5
Maximum level output (-35dBc 2 tones) dBµV: 110
Terrestrial
Bandwidth MHz: 85-862
Gain dB: -9 to -4
Gain adjustment dB: 20
Insertion loss dB: 2
Maximum level output (-60dBc 3 tones) dBµV: 100
Return path
Bandwidth MHz: 5-65
Gain dB: -5
Insertion loss dB: 2
Maximum level output (-35dBc 2 tones) dBµV: 97
General parameters
Isolation SAT-SAT dB: 45
Switching control V, kHz: 14/18, 0/22
Power supply V: 14/18
Current consumption:14V mA: 350, 18V mA: 280
Dimensions (w x d x h) mm: 335x180x30
Operating Temperature °C: -10 to +55
