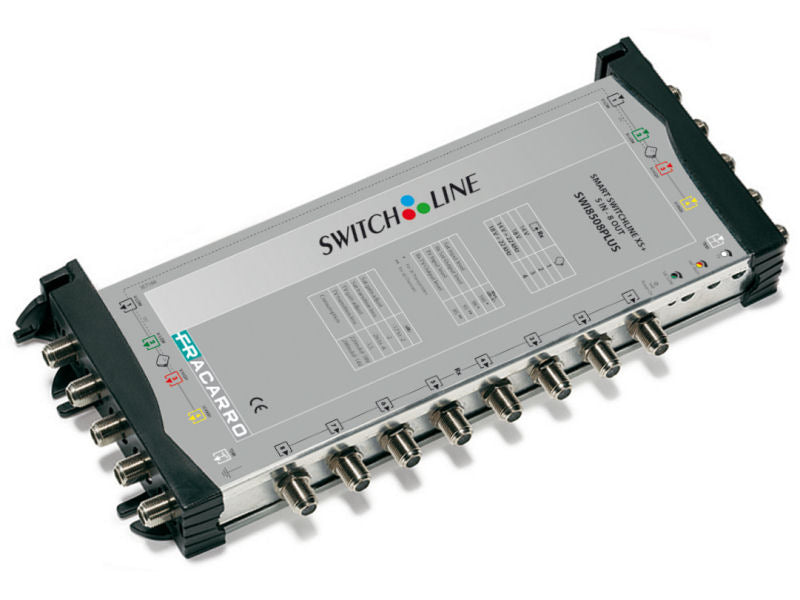

FRACARRO SWI8508+ Cascade Multiswitch

Available: In Stock
Wishlist Compare
  • Product SKU: 271055
£140.99

The Fracarro SWI8508+ is made to be used in a cascade system for medium or big installations.

It has 8 outputs and has been designed as a flexible and cost effective solution. The 3 gain adjustments (SAT A , SAT B and TV band) allows you to easily equalise the full system.

High isolation, low insertion loss and HD compliance make it one of the best products you can find on the market.

Key Points

  • 5 inputs (4 Satellite; 1 Terrestrial)
  • 8 outputs
  • 2 Satellite gain adjustment: High and Low band
  • Terrestrial gain adjustment
  • Capable of 100m drop lengths
  • Fixed gain on return path
  • Low insertion loss
  • Standard colour coding
  • HD compliant

Satellite
Bandwidth MHz: 950–2150
Gain dB: -6 to -2
Gain adjustment dB: 15
Insertion loss dB: 2
Maximum level output (-35dBc 2 tones) dBµV: 110

Terrestrial
Bandwidth MHz: 85–862
Gain dB: -8 to -5
Gain adjustment dB: 20
Insertion loss dB: 1.5
Maximum level output (-60dBc 3 tones) dBµV: 100

Return path
Bandwidth MHz: 5–65
Gain dB: -3
Insertion loss dB: -1.5
Maximum level output (-35dBc 2 tones) dBµV: 95

General parameters
Switching control V, kHz: 14/18, 0/22
Power supply V: 14/18
Current consumption:14V mA: 280, 18V mA: 220
Dimensions (w x d x h) mm: 252x118x30
Operating Temperature °C: -10 to +55
