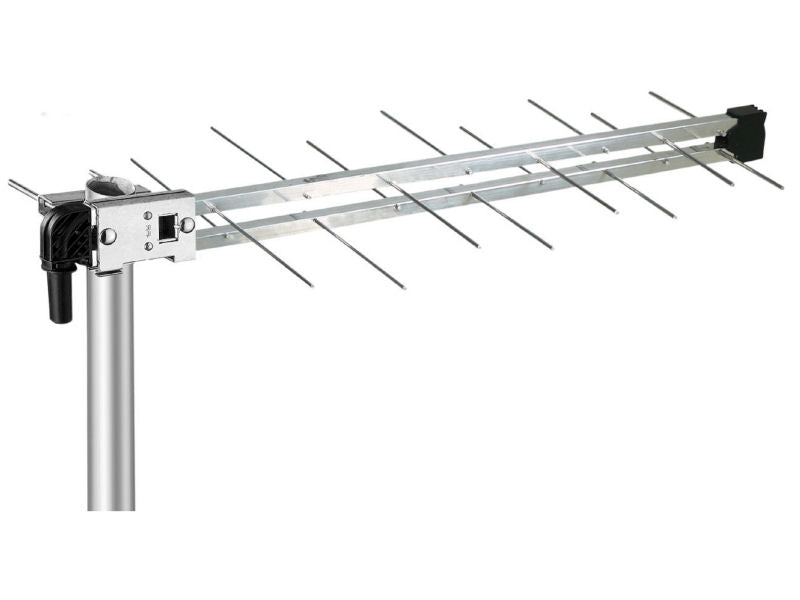

The Fracarro LP4F is a pre-assembled log periodic aerial for receiving Group A signals.
It is easy to install and characterised by a highly reliable RF connection. It can be mounted vertically or horizontally and and has been benchmarked Standard 4 by the CAI (Confederation of Aerial Industries).
TECHNICAL CHARACTERISTICS
Channels (Europe): 21-37
Bandwidth (MHz): 470-606
Maximum gain (dBi): 10
Front-to-back ratio (dB): 32
Return loss (dB): -18
Beamwidth (-3dB) °: +/-25
Impedance (Ohm): 75
MECHANICAL CHARACTERISTICS
Dimensions (LxW): 65 x 33 cm
Maximum mast Ø (mm): 60
Wind load at 120Km/h (720N/m2) Kg (N): 2.8 (27.46)
Connector type: F
