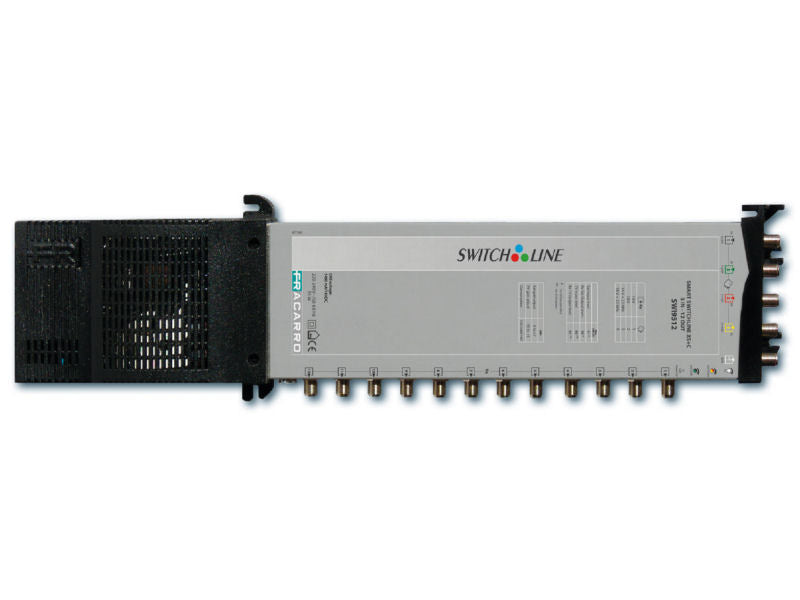

This compact Multiswitch from Fracarro can be used standalone or together with SWI85..PLUS switches which enables a solution to be found for most 5 inputs SMATV systems.
The integrated 2A PSU can supply the switch, the LNB and 2 further switches, making designs flexible and cost effective.
With 3 gain adjustments (SAT High band, SAT Low band and TV band) it is easy to equalise the system.
Main Specifications
- 2 x Satellite gain adjustment: High and Low band
- Terrestrial gain adjustment
- 2A power supply for mixed system
- Removable plug (use CVMS-EU to realise European version)
- Fixed gain on the return path
- Inputs with standard colour coding
- HD compliant
- Capable of 100m drop lengths
Inputs No: 5 (4 Satellite; 1 Terrestrial)
Outputs No: 12
Satellite
Bandwidth MHz: 950 - 2150
Gain dB: 5 to 10
Gain adjustment dB: 15
Maximum output level (-35dBc 2 tones) dBµV: 110
Terrestrial
Bandwidth MHz: 85 - 862
Gain dB: 2 to 5
Gain adjustment dB: 20
Maximum output level (-35dBc 2 tones) dBµV: 105
Return Path
Bandwidth MHz: 5 - 65
Gain dB: 7
Maximum output level (-35dBc 2 tones) dBµV: 105
General Parameters
Switching control V, kHz: 14/18, 0/22
Mains voltage V, Hz: 220-240, 50-60
LNB power supply mA: 1450
Dimensions (wxdxh) mm: 455x127x60
Operating temperature °C: -10 to +55
