FRACARRO BLU220F 22 Element W/B

Add Your Review
Available: In Stock
Wishlist Compare
  • Product SKU: 217850
£14.59

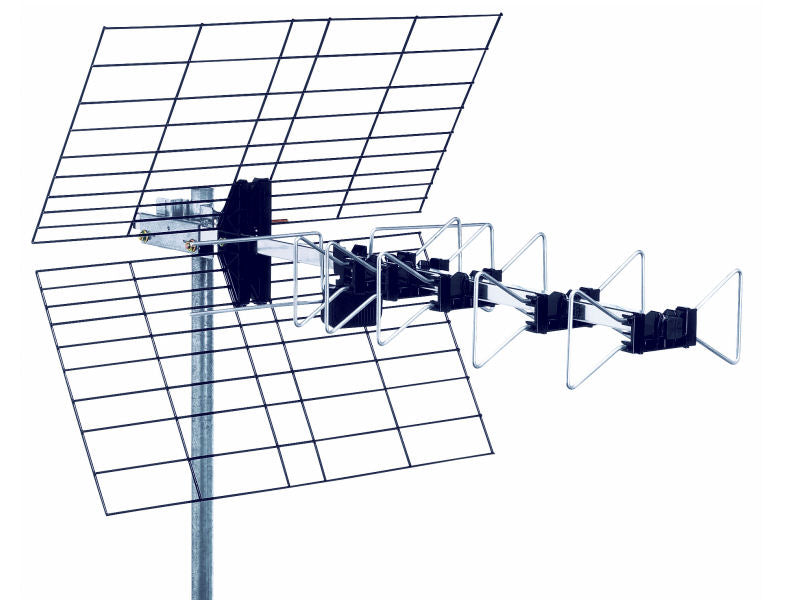

The Fracarro BLU220F is a pre-assembled aerial with F connector and excellent performance.

  • High gain, high directivity and very good return loss
  • Easy to install and characterised by a highly reliable RF connection
  • 60mm maximum mast clamp diameter
  • Good wind loading

Elements (No): 22
Band: UHF
Channels: 21–69
Bandwidth (MHz): 470-862
Maximum gain (dBi): 13
Front-to-back ratio (dB): 30
Return loss (dB): -16
Beamwidth (-3dB) °: +/-25
Wind load at120Km/h (720N/m2) Kg (N): 5.5 (53.95)
Connector (Type): F
Impedance (Ohm): 75
Maximum mast Ø (mm): 60
Dimensions (L x W) cm: 84x50
