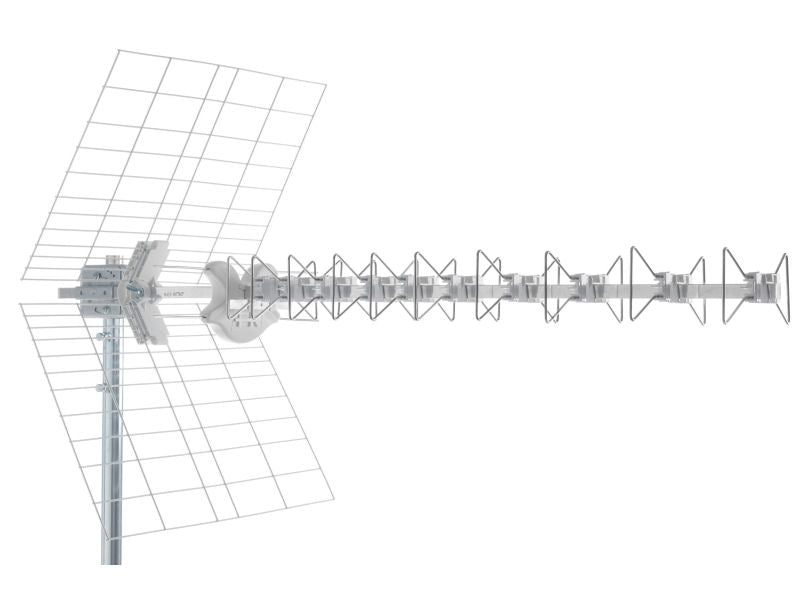

FRACARRO BLU10HD 10 Element A
The Fracarro BLU10HD has superb electrical specifications with excellent directivity and gain.
- Pre-assembled aerial: elements, mast mount and reflector clamp
- Fast and secure grid and dipole insertion onto the preassembled support
- 60mm maximum mast clamp diameter
- Good wind loading
SPECIFICATIONS
- 10 Elements
- F Connector
- Impedance adaptor
- Robust design using quality materials
- Extremely quick construction
- Pre-assembled components
- Maximum mast diameter 60mm
- Impedance 75 Ohm
Band: UHF
Channels: 21 - 69
TECHNICAL CHARACTERISTICS
Bandwidth (MHz): 470 - 862
Maximum gain (dBi): 16
Front-to-back ratio (dB): 30
Return loss (dB): -16
Beamwidth (-3dB) °: +/-22
Impedance (Ohm): 75
