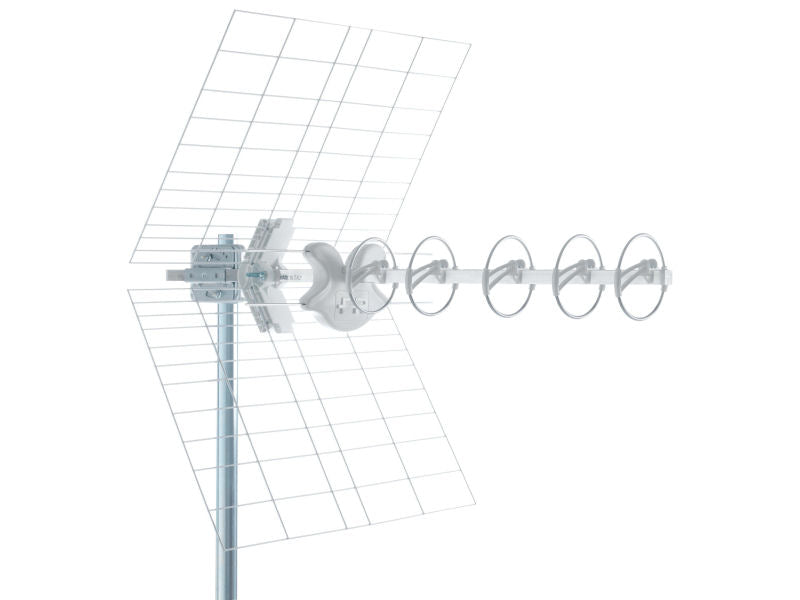

The Fracarro ALPHA 5 HD uses loop yagi technology and has superb electrical specifications with excellent directivity and gain in a compact size.
Pre-assembled aerial: elements, mast mount, reflector clamp and dipole guide.
Fast and secure grid and dipole insertion onto the preassembled support.
60mm maximum mast clamp diameter and the design offers good wind loading.
- 5 elements
- F Connector
- Robust design using quality materials
- Extremely quick construction
- Pre-assembled components
- Impedance 75 Ohm
Band: UHF
Channels (Europe): E21 - E69
TECHNICAL CHARACTERISTICS
Bandwidth (MHz): 470 - 862
Maximum gain (dBi): 15
Front-to-back ratio (dB): 38
Return loss (dB): -18
Beamwidth (-3dB) (°) : +/-22
Impedance (Ohm): 75
MECHANICAL CHARACTERISTICS
Dimensions (L x W) (cm): 81 x 50
Maximum mast diameter (mm): 60
Wind load at 120Km/h (720N/m2) (Kg (N)): 5.7 (55.86)
Connector (Type): F
