CYP v1.4 HDMI® Over x1 CAT5e/6 Wall Plate

HDMI® Over x1 CAT5e/6 Wall Plate

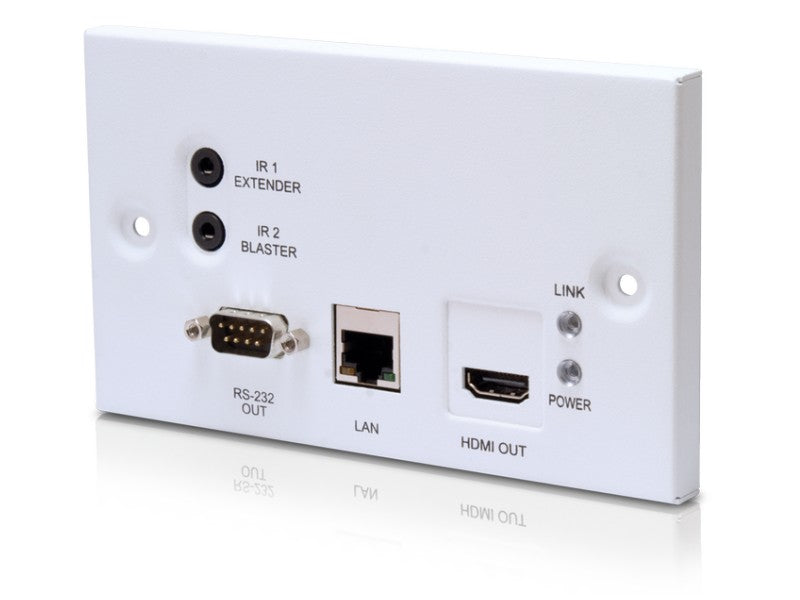

The PU-507-WPRX Wall Plate Receiver allows uncompressed HDMI signals and IP data to be received over a Single CAT5e/6/7 cable. This solution has the added features of RS-232, LAN, IP Control, 2-way IR, and Power over Ethernet (PoE) functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 metres.

• Supports all v1.3 HDMI resolutions plus 4k.
• Supports uncompressed video/audio up to 10.2Gbps
• Common supported resolutions : HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
• HDMI, HDCP, and DVI compliant
• Supports HDCP repeating and CEC functions
• Uncompressed data transfer over single CAT cable (100m - CAT6/7; 80m - CAT5e)
• Uncompressed video 1080p, 60Hz, 48bits
• Audio support up to 7.1CH and Dolby TrueHD, DTS-HD
• 5-Play™ convergence: HDMI, LAN, POE and Control (IR and RS232)
• Supports 3D signals

Inputs 1x RJ45 [1x HDMI and Propriety Data] 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
Outputs 1x HDMI [1x HDMI Uncompressed AV and Data] 1x 9pin Dsub [1x RS-232 Data] 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] 1x RJ45 [1x Ethernet (I/O) IP]
Dimensions 145mm [W] x 85mm [D] x 40mm [H]
Net Weight 360g
Gross Weight 540g
