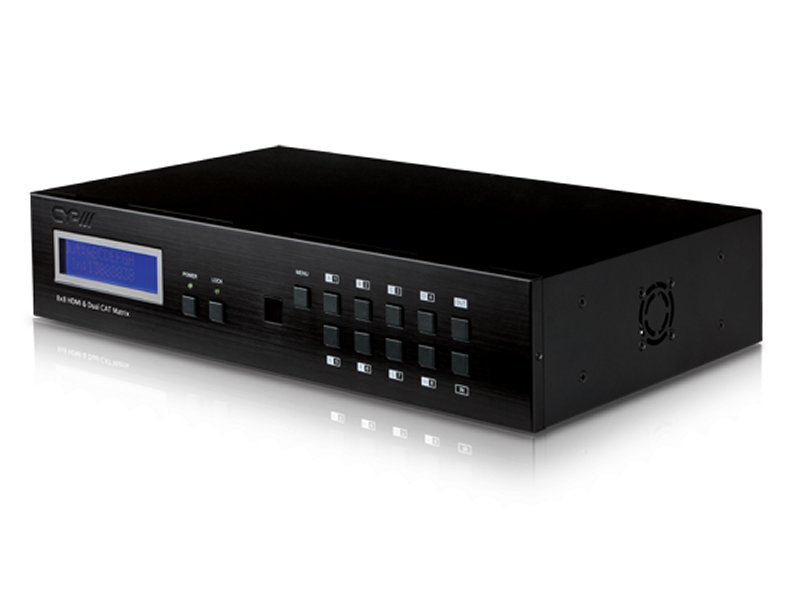

CYP Orbit v1.3 HDMI® 8x8 Matrix DUAL

Add Your Review
Available: In Stock
Wishlist Compare
£2,225.99

The OR-HD88HC Matrix Switcher connects eight HDMI sources to 16 displays. This matrix features 8 HDMI outputs and each HDMI output is mirrored to provide a Twin CAT output which runs simultaneously. Connect a PU-1106RX Receiver to each of the Twin CAT outputs to extend the HDMI signal up to 40m for multi-room connectivity.This matrix switcher can be controlled via the supplied IR Remote Control, RS-232, or by using the selection buttons on the front of the unit. This device supports ‘Deep Colour’, High Definition Audio, and 3D signal compatibility.

Features

  • HDMI, HDCP 1.1, DVI 1.0 compliant
  • Resolutions supported: PC - VGA to WUXGA ; HDTV - 480i to 1080p plus 1080p24fps
  • High Definition audio supported: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio + LPCM
  • The HDMI input is compensated, clock / phase adjusted, and jitter eliminated so the output is a brand new standard HDMI signal running up to 15m at 1080p
  • RS-232, CEC Command functionality, IR Remote Control, and IR extender supported
  • Selectable EDID settings - TV (downstream) and STD (fixed)
  • Supports Deep Colour (10 and 12 bit)
  • Supports 3D signals
  • Key lock function

The OR-HD88HC Matrix Switcher connects eight HDMI sources to 16 displays. This matrix features 8 HDMI outputs and each HDMI output is mirrored to provide a Twin CAT output which runs simultaneously. Connect a PU-1106RX Receiver to each of the Twin CAT outputs to extend the HDMI signal up to 40m for multi-room connectivity.This matrix switcher can be controlled via the supplied IR Remote Control, RS-232, or by using the selection buttons on the front of the unit. This device supports ‘Deep Colour’, High Definition Audio, and 3D signal compatibility.

Features

  • HDMI, HDCP 1.1, DVI 1.0 compliant
  • Resolutions supported: PC - VGA to WUXGA ; HDTV - 480i to 1080p plus 1080p24fps
  • High Definition audio supported: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio + LPCM
  • The HDMI input is compensated, clock / phase adjusted, and jitter eliminated so the output is a brand new standard HDMI signal running up to 15m at 1080p
  • RS-232, CEC Command functionality, IR Remote Control, and IR extender supported
  • Selectable EDID settings - TV (downstream) and STD (fixed)
  • Supports Deep Colour (10 and 12 bit)
  • Supports 3D signals
  • Key lock function
