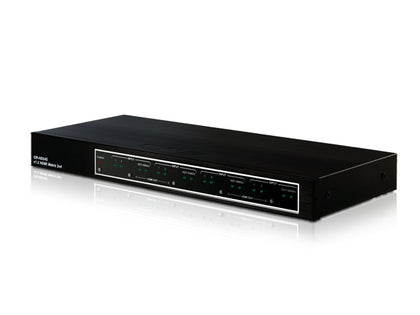

CYP Orbit v1.3 HDMI® 4x4 Matrix Switch
- Product SKU: OR-HD44S
- Category: PlutoDirect|Satellite & TV|HDMI||PlutoDirect|Satellite & TV|HDMI|HDMI Matrixes - CYP
Each HDMI matrix in the Orbit range of full matrix switchers is compatible to v1.3 HDMI specifications, supporting 'Deep Colour' together with High Definition Audio.
Features:
- v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant.
- HDMI 4 x 4 Matrix Switcher.
- Resolutions supported: PC - VGA to UXGA; HDTV - 480i to 1080p plus 1080p24fps.
- High Definition Audio supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM.
- The HDMI input is compensated, clock / phase adjusted, and jitter eliminated so the output is a brand new standard HDMI signal.
- Supports IR remote control and IR extender together with RS-232 control.
- Supports 'Deep Colour' (10 and 12 bit).
- Selectable EDID settings - TV (downstream) and STD (fixed).
- Power, HDMI/DVI and HDCP plus independent output LED's indicator.
- Supports 3D signals
Specification:
Inputs: 4 x HDMI female ports
Outputs: 4 x HDMI Female ports
Power: 5VDC/5A (US/EU standards, CE/FCC/UL certified)
Dimensions: 438(W) x 175(D) x 49(H)mm
Gross Weight: 2180g
Net. Weight: 1800g
