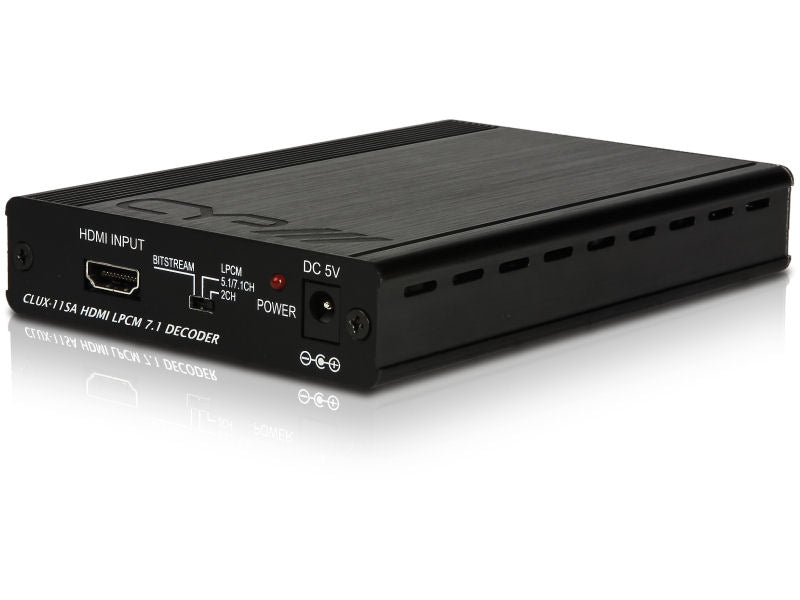

CYP Audience v1.3 HDMI® Audio De-embedder
- Product SKU: AU-11SA
- Category: PlutoDirect|Satellite & TV|HDMI||PlutoDirect|Satellite & TV|HDMI|Audio - Video|Audio Products - CYP
CYP Audience v1.3 HDMI® Audio De-embedder
The CLUX11SA is using HDMI V1.3, which defines the support to transfer Deep Colour (12 bits/colour) video and new loss less compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio with a high bandwidth up to 225MHz, including de-coded analogue multi-channel output.
NOTE: Different cable quality may affect - the maximum resolution and transmission distance.
CLUX11SA Features:
- Compliant with HDMI 1.3, HDCP 1.1 and DVI1.1
- Corrects digital error and automatically provides equalisation up to 40dB
- Supports high definition input up to 1080p – output resolution follows input
- Supports HDMI signal amplification and equalisation output for repeater function – up to 20 metre cable can be used to the input and 15 metre cables from output.
- Supports uncompressed digital LPCM7.1 5.1 or 2 channels and compressed digital Bitstream through HDMI Input and output ports.
- Supports digital Dolby 5.1 and LPCM 2 channels output via optical
- Supports LPCM 7.1 channels output through multi-channel output ports.
TECHNICAL SPECIFICATIONS:
Input: 1 x HDMI
Output: 1 x HDMI, 4 x 3.5mm st. jack plugs, 1 Optical
Power: 5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
Dimensions: 100(W) x 147(D) x 25(H)mm
Weight: 300g
