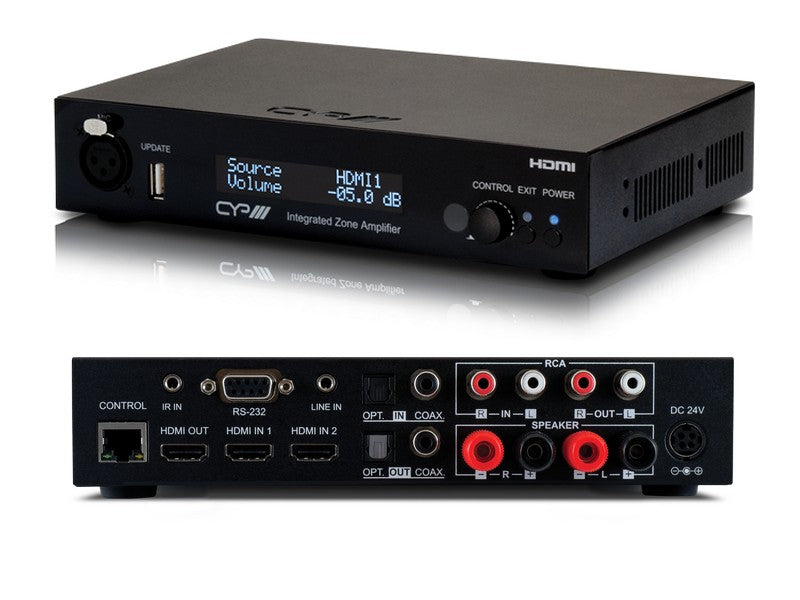

CYP Audience Integrated 2 Ch Zone Amp
- Product SKU: AU-A300
- Category: PlutoDirect|Satellite & TV|HDMI||PlutoDirect|Satellite & TV|HDMI|Audio - Video|Audio Products - CYP
2 Ch Zone Amp
The AU-A300 is a compact 2 channel amplifier that is perfect for providing high quality audio distribution into remote AV zones. This solution can integrate audio from a CYP matrix input, local inputs (iPod and MP3 etc) and even the TV which is growing in popularity as a dedicated source within an AV system.
- 30W per channel digital stereo Amplifier
- Inputs: HDMI x 2, 1 x L/R Stereo audio, 1 x Optical, 1 x Digital Co-Ax, 1 x 3.5mm Stereo
- Outputs: 1 x HDMI, 1 x Optical, 1 x Digital Co-Ax, 1 x L/R Stereo (Line Level output), Speaker Terminals
- Control via remote control, RS-232 or IP (Web GUI or Telnet)
- Dedicated Microphone input for commercial application
- Supports Digital to Analogue (DAC) and Analogue to Digital (ADC) conversion
- Simultaneous audio outputs
- Compact design for remote application
Inputs 2x HDMI [2x HDMI Uncompressed AV and Data] 1x XLR [1x Microphone] 1x Toslink [1x Optical - 2 Channel LPCM] 1x RCA [1x Coaxial - 2 Channel LPCM] 2x RCA [1x Analogue - Stereo (L/R)] 1x 3.5mm Stereo mini-jack [1x Analogue - Stereo(L/R)] 1x RJ45 [1x IP Control] 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] 1x 9pin Dsub [1x RS-232 Data]
Outputs 1x HDMI [1x HDMI Uncompressed AV and Data] 1x Toslink [1x Optical - 2 Channel LPCM] 1x RCA [1x Coaxial - 2 Channel LPCM] 2x RCA [1x Analogue - Stereo (L/R)] 4x Speaker Binding Posts [1x Speaker Level Stereo Output]
PSU: 24V/4.16A
Dimensions 255mm [W] x 170mm [D] x 48mm [H]
Net Weight 1060g
Gross Weight 2260g
2 Ch Zone Amp
The AU-A300 is a compact 2 channel amplifier that is perfect for providing high quality audio distribution into remote AV zones. This solution can integrate audio from a CYP matrix input, local inputs (iPod and MP3 etc) and even the TV which is growing in popularity as a dedicated source within an AV system.
- 30W per channel digital stereo Amplifier
- Inputs: HDMI x 2, 1 x L/R Stereo audio, 1 x Optical, 1 x Digital Co-Ax, 1 x 3.5mm Stereo
- Outputs: 1 x HDMI, 1 x Optical, 1 x Digital Co-Ax, 1 x L/R Stereo (Line Level output), Speaker Terminals
- Control via remote control, RS-232 or IP (Web GUI or Telnet)
- Dedicated Microphone input for commercial application
- Supports Digital to Analogue (DAC) and Analogue to Digital (ADC) conversion
- Simultaneous audio outputs
- Compact design for remote application
Inputs 2x HDMI [2x HDMI Uncompressed AV and Data] 1x XLR [1x Microphone] 1x Toslink [1x Optical - 2 Channel LPCM] 1x RCA [1x Coaxial - 2 Channel LPCM] 2x RCA [1x Analogue - Stereo (L/R)] 1x 3.5mm Stereo mini-jack [1x Analogue - Stereo(L/R)] 1x RJ45 [1x IP Control] 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver] 1x 9pin Dsub [1x RS-232 Data]
Outputs 1x HDMI [1x HDMI Uncompressed AV and Data] 1x Toslink [1x Optical - 2 Channel LPCM] 1x RCA [1x Coaxial - 2 Channel LPCM] 2x RCA [1x Analogue - Stereo (L/R)] 4x Speaker Binding Posts [1x Speaker Level Stereo Output]
PSU: 24V/4.16A
Dimensions 255mm [W] x 170mm [D] x 48mm [H]
Net Weight 1060g
Gross Weight 2260g
