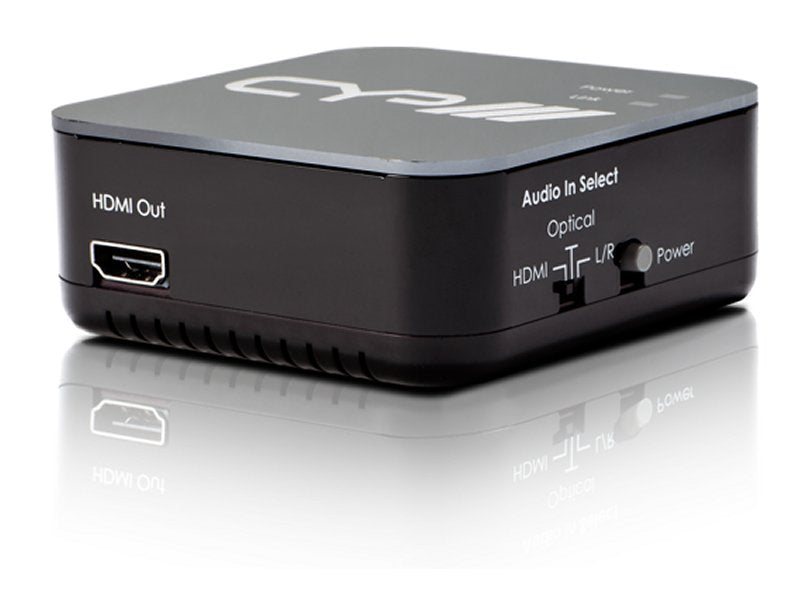

CYP Audience Audio Inserter
- Product SKU: AU-11CA
- Category: PlutoDirect|Satellite & TV|HDMI||PlutoDirect|Satellite & TV|HDMI|Audio - Video|Audio Products - CYP
CYP Audience Audio Inserter
The AU-11CA Audio Embedder lets you insert an external audio signal into any HDMI source. The device allows you to insert analogue or digital stereo and multi-channel digital surround sound signals (via Optical) to give users the capability to overcome audio issues within complex HDMI installation. The AU-11CA also repeats the HDMI signal to allow an extended total HDMI cable range.
Features
Compliant with HDMI v1.3 , HDCP 1.2 and DVI 1.0.
Supports Optical Sample Rate up to 96 kHz.
Supports LPCM Stereo, DTS and Dolby Digital via Optical input.
Supports up to 24bit resolution digital audio.
HDMI cable distance testing showed that with 1080p 8bit/12bit resolution, the input/output distance is up to 10 meters.
Low power consumption.
Supports HDMI Sample Rates up to 192 kHz.
Specification
Inputs 1 x HDMI, 1 x Optical, 1 x Analogue Stereo (2 x RCA)
Outputs 1 x HDMI
Power 5V/1A DC (US/EU standards, CE/FCC/UL certified).
Dimensions 85(D) x 85(W) x 35(H)mm.
Gross Weight 440g.
Net. Weight 260g
