CYP 1 HDMI to 2 HDBaseT Splitter

1 HDMI to 2 HDBaseT™ Splitter

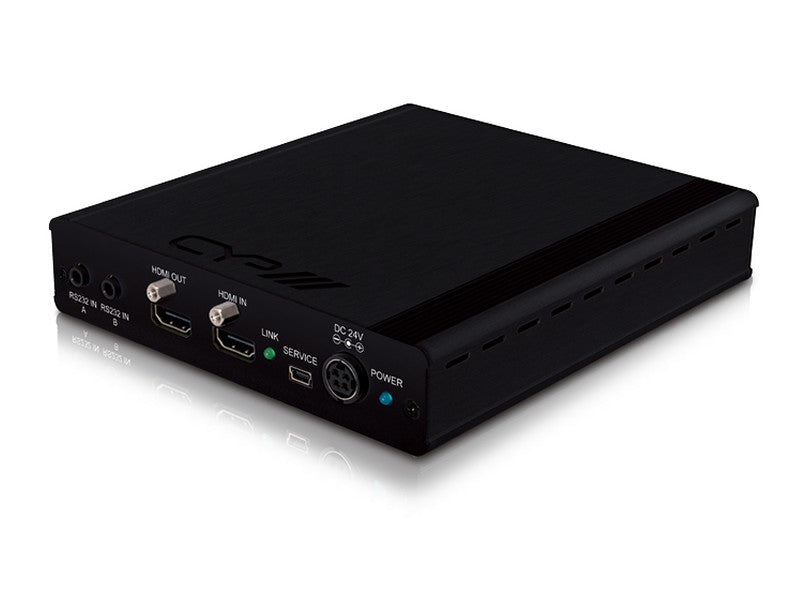

The PU-1H2BTE splitter accepts 1x HDMI input and distributes to 2 HDBaseT™ outputs, plus 1 HDMI bypass output. The HDBaseT™ outputs allow uncompressed HDMI, LAN, PoE, IR, and RS-232 signals to be transmitted over a Single CAT5e/6/7 cable up to 100m. Installers can confidently distribute HDMI signals to 3 displays, and if required, use the HDMI bypass output to cascade the HDMI signal up to 5 times with additional HDBaseT™ splitters.
PU-507RX Receivers are recommended to utilise the full 5-Play™ functionality of the HDBaseT™ outputs of this device.

• Supports all v1.4 HDMI resolutions plus 4k.
• HDMI, HDCP, and DVI compliant
• Supports uncompressed video/audio up to 10.2Gbps
• Common supported resolutions : HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24, 4K2K; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
• Supports HDCP repeating and CEC functions
• Uncompressed data transfer over single CAT cable (100m - CAT6/7; 80m - CAT5e)
• Audio support up to 7.1CH and Dolby TrueHD, DTS-HD
• Supports full 5-Play™ Convergence : HDMI / LAN / PoE (Power over Ethernet) / IR / RS-232
• Supports 3D signals

Inputs 1x HDMI [1x HDMI Uncompressed AV and Data] 2x 3.5mm Stereo mini-jack [2x RS-232] 2x 3.5mm Stereo mini-jack [2x Infra Red Receiver]
Outputs 1x HDMI [1x HDMI Uncompressed AV and Data] 2x RJ45 [2x HDMI and Propriety Data] 2x 3.5mm Stereo mini-jack [2x Infra Red Emitter] 1x RJ45 [1x Ethernet (I/O) IP]
PSU: 24V/2.7A
Dimensions 145mm [W] x 160mm [D] x 30mm [H]
Net Weight 530g
Gross Weight 700g
