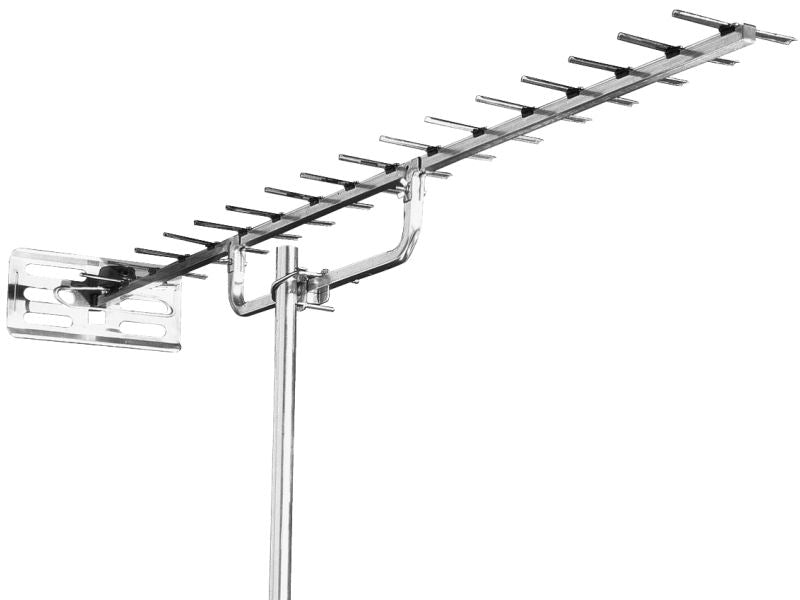

(Bag x5) BLAKE UHF Contract 18 Element W/B
Enhanced for DTT reception
- Cost effective to use
- Ideal for good to medium signal strength analogue reception areas
- ‘Inclined’ folded tube dipole incorporating an easy fit termination with a soldered brass electrical terminal, braid clamp and a printed circuit board balun for improved gain, impedance match, bandwidth and impulsive noise rejection
- Watertight insulator cap, malleable in all working temperatures
- Enlarged reflector to reduce gain loss at low channel numbers or extended bandwidths
- Easy fitting sliding clamp, suitable to fit 1" to 2" masting
- Strengthened element clips to reduce the possibility of director damage
Channels: 21-68
Frequency: 470 ... 854 MHz
Bays: 18
Elements: 16
Gain (dBd): 12 - 13.5
Beamwidth: +/- 20 degrees
Length: 1500mm
Weight: 0.72kg
