(Bag x5) BLAKE UHF Contract 14 Element W/B
Rated 3.5/5 based on 11 customer reviews
  • Order By 5pm
    For Same Day Dispatch
  • 99% Customer
    Feedbacks
  • 14 Days
    Money Back Guarantee
  • Payment
    Secure System
  • Only Best
    Brands

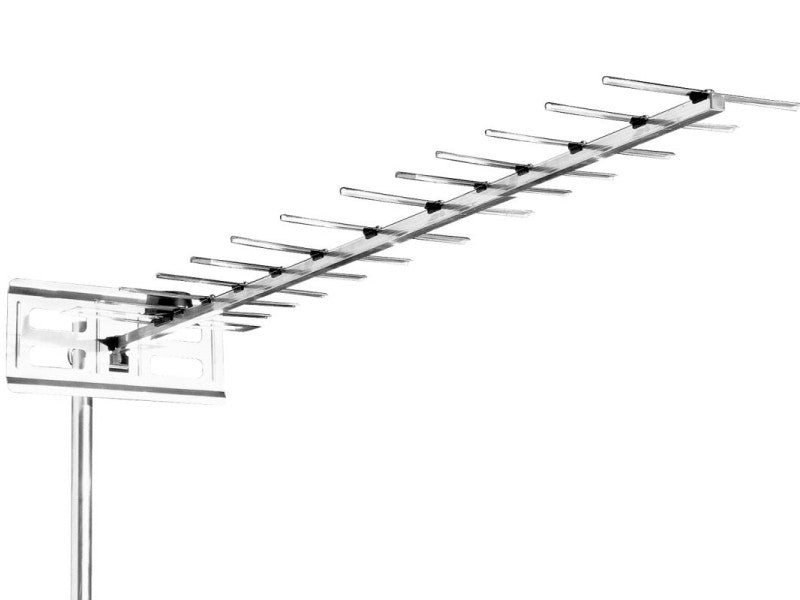

(Bag x5) BLAKE UHF Contract 14 Element W/B

Available: In Stock
Wishlist Compare
  • Product SKU: CR14W
£38.99

- Enhanced for DTT reception

  • Cost effective to use
  • Ideal for good to medium signal strength analogue reception areas
  • "Inclined" folded tube dipole incorporating an easy fit termination with a soldered brass electrical terminal, braid clamp and a printed circuit board balun for improved gain, impedance match, bandwidth and impulsive noise rejection
  • Watertight insulator cap, malleable in all working temperatures
  • Enlarged reflector to reduce gain loss at low channel numbers or extended bandwidths
  • Easy fitting sliding clamp, suitable to fit 1" to 2" masting
  • Strengthened element clips to reduce the possibility of director damage

Group: W/B
Channels: 21-68
Frequency: 470-854 MHz
Forward Gain (dBd): 10
Number of Elements: 14
Number of Directors: 12
Gain (dBd): 11.0 - 12.0
Beamwidth: +/- 20 degrees
Length: 1200mm
Weight: 0.47kg

- Enhanced for DTT reception

  • Cost effective to use
  • Ideal for good to medium signal strength analogue reception areas
  • "Inclined" folded tube dipole incorporating an easy fit termination with a soldered brass electrical terminal, braid clamp and a printed circuit board balun for improved gain, impedance match, bandwidth and impulsive noise rejection
  • Watertight insulator cap, malleable in all working temperatures
  • Enlarged reflector to reduce gain loss at low channel numbers or extended bandwidths
  • Easy fitting sliding clamp, suitable to fit 1" to 2" masting
  • Strengthened element clips to reduce the possibility of director damage

Group: W/B
Channels: 21-68
Frequency: 470-854 MHz
Forward Gain (dBd): 10
Number of Elements: 14
Number of Directors: 12
Gain (dBd): 11.0 - 12.0
Beamwidth: +/- 20 degrees
Length: 1200mm
Weight: 0.47kg
