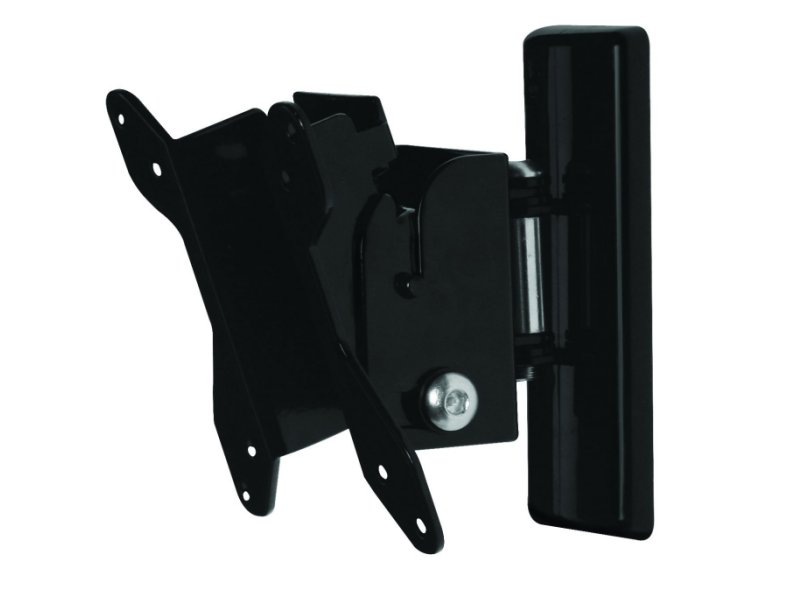

B-TECH 23" Small TV Mount (Tilt & Swivel)
- Product SKU: BT7518
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|Mounting|Screen Mounting - B-Tech
B-TECH 23" Small TV Mount (Tilt and Swivel)
Flat Screen Wall Mount with Tilt
Colour: Black
- Designed for LCD / TFT screens up to 23"
- Max weight 20Kg
- Fits 75 x 75mm and 100 x 100mm VESA mounting patterns
- Mounts screen only 55mm from wall
- Simple hook-on installation with all mounting hardware included
- Supplied with pin hex security screws for added security
- Compatible with B-Tech accessory collars
- Retail Packaging
- Tilts -17 and + 17 degrees
- Swivels 180 degrees
- GS / TUV certified
This mount is designed for LCD VESA Standard Screens with a screen size from 10" up to 23" and weight up to 20Kg.
The BT7511 tilts -17 and +17 degrees and swivels through 180 degrees (this may be limited due to the size of your screen)
A simple two piece installation process is all it takes to mount your screen to the wall (all mounting hardware is included).
Unique security screws together with long hex key are provided as standard to lock the screen to the bracket and help prevent theft. This bracket can be mounted on single wood studs or concrete / brick walls (mounting to metal studs requires special metal stud fasteners which are not supplied).
