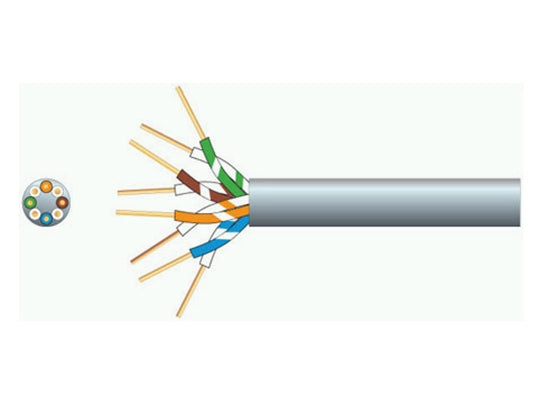

This CAT6 Cable from Webro is a multi-pair cable used mainly for Data transmission that supports a frequency range up to 250MHz and speeds up to 1 gigabit per second.
CONSTRUCTION
Inner conductor: Plain Copper
Dielectric: HDPE Insulation
Sheath: PVC Sheath
MECHANICAL CHARACTERISTICS
Inner conductor diameter: 0.55mm nom Plain Copper
Insulation diameter: 1.00mm Nominal diameter
Colour Sequence: Blue and White/Blue, Orange and Orange/White, Green and Green/White, Brown and White/Brown
Sheath diameter: 6.30mm Nominal
Cable: Storage/operating temperature: -15°C to +80°C
Cable: Minimum installation temperature: -5 °C
ELECTRICAL CHARACTERISTICS
Mutual capacitance: 190 pF / m
Vp: 67-69%
Characteristic impedance: 100 +/- 15O
Conductor Resistance: 79.85O/Km
