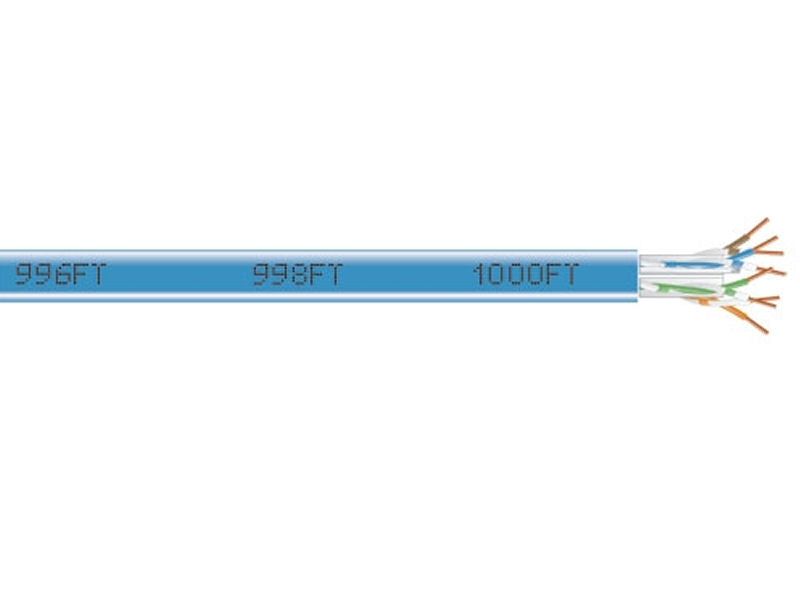

A high performance, premium BLUE CAT6 PVC Cable from BLACK BOX.
Designed for high-end applications this cable is ideal for digital video, 100-Mbps TP-PMD, and 155-Mbps ATM networks, as well as future applications such Gigabit Ethernet and WideBand€ Ethernet.
The cable is marked in 60-centimetre increments so you always know how much you have left. Packaged on a spool in a convenient box for easy dispensing, this round cable features a cross-web design for strength and performance. Every master spool is tested for electrical performance and guaranteed to exceed ANSI/TIA/EIA-568-B.2-1 Category 6 and ISO/IEC 11801 requirements.
It features a flame-retardant PVC jacket and polyolefin insulation.
TECHNICAL DATA:
- AC Leakage Current Through Overall Jacket - AC 1500 < 10 mA
- ACR (Minimum at 100-m) - 26.5 dB at 100 MHz; 7.5 dB at 250 MHz; 2.8 dB at 300 MHz
- Attenuation (Maximum at 100-m) - 19.8 dB at 100 MHz; 32.8 dB at 250 Mhz; 51.8 dB at 550 MHz
- Cable Type - 4-pair UTP, 300 V
- Capacitance Unbalance (Maximum) - 330pF/100-m (Pair to ground)
- Capacitance, Mutual Maximum - 56 pF/km
- Characteristic Impedance - 1-550 MHz: 100 +/- 15 ohms
- Cold Bend Test - -20°C at 4 hrs, no crack
- Conductor - 23 AWG, solid, bare copper
- Conductor Resistance - 93.8 ohm/67°F maximum
- Dielectric - AC: 1.5 KV/2 Sec
- DC Resistance Unbalance (Maximum) - 5%
- Delay Skew (Maximum) - 1-550 MHz: 30 ns/100-m
- EL-FEXT (Minimum at 100-m) - 27.8 dB at 100 MHz; 19.8 at 250 MHz; 12.9 at 550 MHz
- Insulation Material - HDPE; Thickness: Average and minimum: 0.008"; Diameter: 0.039" +/- 0.0011"
- Insulation Shrinkback - 150 m/m; 121°C at 1hr at 9.5 m/m
Jacket - 0.24" OD
- NEXT (Minimum at 100-m) - 46.3 dB at 100 MHz; 40.3 dB at 250 MHz; 35.2 dB at 550 MHz
- Propagation Delay - 550 Mhz: 536 nS/100-m
- PS-ACR (Minimum at 100-m) - 24.5 dB at 100Mhz; 5.5 dB at 250 MHz
- PS-ELFEXT (Minimum at 100-m) - 27.8 dB at 100 MHz; 19.8 dB at 250 MHz; 12.9 dB at 550 MHz
- PS-NEXT (Minimum at 100-m) - 44.3 dB at 100 Mhz; 38.3 dB at 200 MHz; 33.2 dB at 350 MHz
- Rating Temperature Voltage - 75°C; 300 V
- Return Loss (Minimum at 100-m) - 20.1 dB at 100 Mhz; 17.3 dB at 250 Mhz; 14.9 dB at 550 MHz
- Spark test - 2.5 KV
- Weight - 13.65 kg/304.8-m
