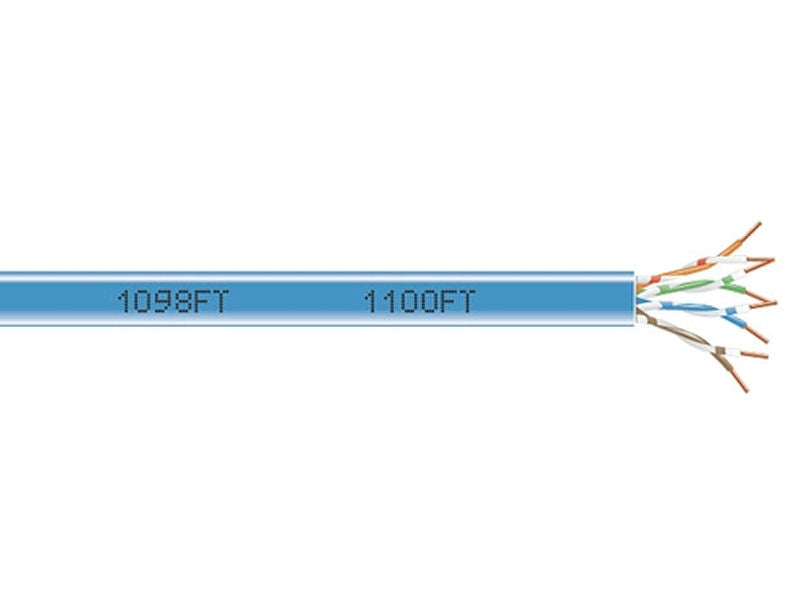

A high performance, premium BLUE CAT5e PVC Cable from BLACK BOX.
This cable is tested and characterised to 350 MHz. With low-attenuation and Power Sum crosstalk characteristics over an extended frequency range, extra headroom provides room for growth and provide better performance for voice, 10BASE-T, 100BASE-TX, 100-Mbps TP-PMD, T1, 155-Mbps ATM, 622-Mbps ATM, Gigabit Ethernet, and other high-speed applications.
Packaged on a spool in a convenient box for easy dispensing the Accu-Pull Measuring System let you know always how much cable is left on the spool. A longitudinal rip cord makes jacket opening easier.
TECHNICAL DATA:
AC Leakage Current Throughout Overall Jacket - AC 1500V < 10 mA
ACR (Minimum at 100-m) - 13.3 dB at 100 MHz
Attenuation (Minimum at 100-m) - 22.0 dB at 100 MHz; 32.4 dB at 200 MHz; 44.9 dB at 350 MHz
Cable Type - 4-pair UTP, 300 V
Capacitance Unbalance (Maximum) - 330 pF/100-m (pair to ground)
Capacitance, Mutual (Maximum) - 56 pF/km
Characteristic Impedance - 1-350 MHz: 100 +/- 15 ohms
Cold Bend Test - -20°C at 4 hours; no crack
Conductor - 24 AWG, solid, bare copper
Conductor Resistance (Maximum) - 93.8 ohm/67°F
Dielectric Strength - AC: 1.5 KV/2 sec
DC Resistance Unbalance (Maximum) - 5%
Delay Skew (Maximum) - 1-350 MHz: 40 nS/100-m
EL-FEXT (Minimum at 100-m) - 23.8 dB at 100 MHz; 17.7 dB at 200 MHz; 12.9 dB at 350 MHz
Input Impedance - 1-100 MHz: 100 +/- 15 ohms
Insulation Material - HDPE; Thickness Average and minimum: 0.007"; Diamter: .035 +/- 0.0007"
Insualtion Shrinkback - 150 m/m; 121°C at 1hr. at 9.5 m/m
Jacket - 0.188" OD
NEXT (Minimum at 100-m) - 35.3 dB at 100 MHz; 30.8 dB at 200 MHz; 27.1 dB at 350 MHz
Outside Diamater - PVC: 0.18" +/- 0.007"
Propagation Delay - 536 nS/100-m at 350 MHz
PS-ACR (Minimum at 100-m) - PVC: 10.3 dB at 100 MHz
PS-ELFEXT (Minimum at 100-m) - 20.8 dB at 100 MHz; 14.7 dB at 200 MHz; 9.9 dB at 350 MHz
PS-NEXT (Minimum at 100-m) - 32.3 dB at 100 MHz; 27.8 dB at 200 MHz; 24.1 dB at 350 MHz
Rating Temperature Voltage - 75°C; 300V
Return Loss - 20.1 dB at 100 MHz
Spark Test - 2.5 KV
Velocity Of Propagation (Minimum) - 62.1% at 350 MHz
Weight - 9.5 kg/304.8-m
A high performance, premium BLUE CAT5e PVC Cable from BLACK BOX.
This cable is tested and characterised to 350 MHz. With low-attenuation and Power Sum crosstalk characteristics over an extended frequency range, extra headroom provides room for growth and provide better performance for voice, 10BASE-T, 100BASE-TX, 100-Mbps TP-PMD, T1, 155-Mbps ATM, 622-Mbps ATM, Gigabit Ethernet, and other high-speed applications.
Packaged on a spool in a convenient box for easy dispensing the Accu-Pull Measuring System let you know always how much cable is left on the spool. A longitudinal rip cord makes jacket opening easier.
TECHNICAL DATA:
AC Leakage Current Throughout Overall Jacket - AC 1500V < 10 mA
ACR (Minimum at 100-m) - 13.3 dB at 100 MHz
Attenuation (Minimum at 100-m) - 22.0 dB at 100 MHz; 32.4 dB at 200 MHz; 44.9 dB at 350 MHz
Cable Type - 4-pair UTP, 300 V
Capacitance Unbalance (Maximum) - 330 pF/100-m (pair to ground)
Capacitance, Mutual (Maximum) - 56 pF/km
Characteristic Impedance - 1-350 MHz: 100 +/- 15 ohms
Cold Bend Test - -20°C at 4 hours; no crack
Conductor - 24 AWG, solid, bare copper
Conductor Resistance (Maximum) - 93.8 ohm/67°F
Dielectric Strength - AC: 1.5 KV/2 sec
DC Resistance Unbalance (Maximum) - 5%
Delay Skew (Maximum) - 1-350 MHz: 40 nS/100-m
EL-FEXT (Minimum at 100-m) - 23.8 dB at 100 MHz; 17.7 dB at 200 MHz; 12.9 dB at 350 MHz
Input Impedance - 1-100 MHz: 100 +/- 15 ohms
Insulation Material - HDPE; Thickness Average and minimum: 0.007"; Diamter: .035 +/- 0.0007"
Insualtion Shrinkback - 150 m/m; 121°C at 1hr. at 9.5 m/m
Jacket - 0.188" OD
NEXT (Minimum at 100-m) - 35.3 dB at 100 MHz; 30.8 dB at 200 MHz; 27.1 dB at 350 MHz
Outside Diamater - PVC: 0.18" +/- 0.007"
Propagation Delay - 536 nS/100-m at 350 MHz
PS-ACR (Minimum at 100-m) - PVC: 10.3 dB at 100 MHz
PS-ELFEXT (Minimum at 100-m) - 20.8 dB at 100 MHz; 14.7 dB at 200 MHz; 9.9 dB at 350 MHz
PS-NEXT (Minimum at 100-m) - 32.3 dB at 100 MHz; 27.8 dB at 200 MHz; 24.1 dB at 350 MHz
Rating Temperature Voltage - 75°C; 300V
Return Loss - 20.1 dB at 100 MHz
Spark Test - 2.5 KV
Velocity Of Propagation (Minimum) - 62.1% at 350 MHz
Weight - 9.5 kg/304.8-m
