250m WEBRO 'FOAM' WF100 Black LSZH
- Product SKU: 6336
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|Cable|Cable - Coax HD / LSF / LSZH

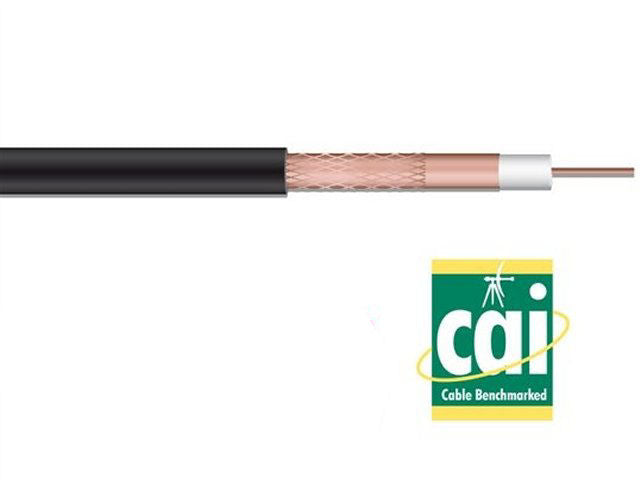

A WF100 cable with a Low Smoke No Halogen outer sheath.
MECHANICAL SPECIFICATIONS.
TYPE: WF100 LSNH
INNER CONDUCTOR: 1.0mm CU
DIELECTRIC: Foam PE
DIAMETER OVER DIELECTRIC: 4.8mm
SCREEN: CU Foil
BRAID AND COVERAGE CU: CU 40%
SHEATHING MATERIAL: LSNH
DAIMETER OVER SHEATH: 6.8mm
COLOUR: Black
WEIGHT APPROX Kg/Km: 47
MINIMUM SETTING RADIUS: 65mm
MAX TENSILE STRENGTH: 55N
ELECTRICAL SPECIFICATIONS:
CHARACTERISTIC IMPEDANCE: 75 Ohm
CAPACITANCE pF/m: 55
VELOCITY RATIO: 0.81
ATTENUATION (dB 100m) at
10 MHz: 1.8
50 MHz: 4.2
100 MHz: 5.9
230 MHz: 9.1
300 MHz: 10.5
470 MHz: 13.3
600 MHz: 15.0
860 MHz: 18.3
1000 MHz: 19.9
1350 MHz: 23.4
1750 MHz: 27.0
2150 MHz: 30.3
RETURN LOSS:
