100m WEBRO *CABNEX* WF65 TWIN SKY+ White

Available: In Stock
Wishlist Compare
£32.99

'CABNEX' WF65 Twin Cable from Webro is suitable for many applications, including low power video, video signal and broadband signals.

It is also used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions.

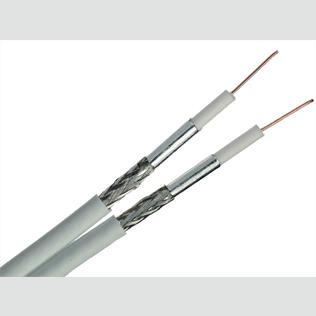

CONSTRUCTION
Inner Conductor: Copper Clad Steel
Dielectric: Foamed Polyethylene Insulation
Screen: Aluminium Foil Tape
Screen: Aluminium Braid
Sheath: PVC Sheath

MECHANICAL CHARACTERISTICS
Inner conductor diameter: 0.65mm Copper Clad Steel
Insulation diameter: 2.90mm (Nominal)
1 Screen: Aluminium Foil tape
2 Screen: Aluminium Wire Braid Coverage >85%
Sheath Diameter: 4.70 x 9.50mm Nominal
Cable: Storage operating temperature: -15°C to +70°C , Minimum installation temperature: -5°C

ELECTRICAL CHARACTERISTICS:
DC resistance Inner conductor: =260 O/km @ 20°C
DC resistance Outer conductor: =45 O/km @ 20°C
Characteristic Impedance: 75 ± 3Ohm
Capacitance: 53pF/m (nominal)
Velocity Ratio: 0.81
Attenuation (d/B 100m @ 20°C):
5Mhz: <3.5
50Mhz: <8.5
100Mhz: <11.0
200Mhz: <14.0
460Mhz: <22.5
860Mhz: <30.5
1000Mhz: <32.5
1750Mhz: <42.2
2150Mhz: <47.0
Return Loss:
5-470MHz: =23
470-862MHz: =20
862-2150MHz: =15
