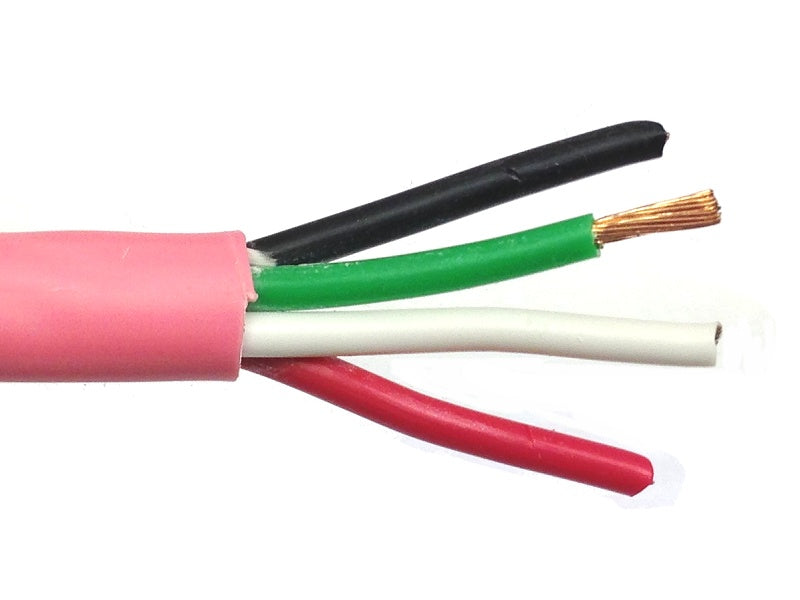

100m 4 Core LSZH Speaker Cable PINK
100m 4 Core LSZH Speaker Cable PINK
Application:
- Speaker cables for Audio connections.
Construction:
- Inner conductor: Plain Oxygen Free Copper
- Dielectric: LSZH Insulation
- Sheat: LSZH Sheath
Mechanical Characteristics:
- 1. Inner conductor diameter: 1.50mm² Plain Annealed Copper
- 2. Insulation diameter: 2.50mm (Natural)
- 3. Core Colours: Red and White
- 4. Sheath Diameter: 6.70 +/- 0.30mm
- 5. Cable Storage/operating temperature: -15°C to +70°C
- Minimum installation temperature: -5°C
Electrical Characteristics:
- DC resistance conductor: = 13.3 O/km @ 20°C
- Operating voltage: 50V
