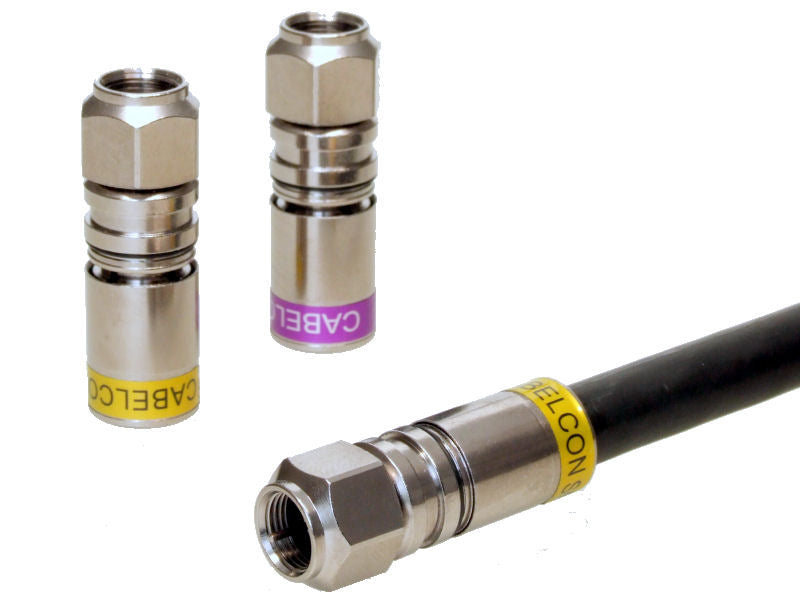

(1) CABELCON Quickmount™ 'F' 1.65mm
Compression Connector
- CX3 QuickMount™ connectors are true Cabelcon quality products, offering the highest performance required by leading operators.
- CX3 QuickMount™ RG11 connectors has no sleeve inside and are therefore extremely easy to install - even on hard PE cables, while ensuring superior pull off strength!
- CX3 QuickMount™ is of course NiTin-6™ plated. The unique Cabelcon EPDM sealing in the nut and the compression sealing to the cable makes CX3 QuickMount™ 100 % waterproof IPX8 (30m/8h).
Extended Details
- Excellent pull strength
- Operational to above 3 GHz
- True Cabelcon Nitin-6™ plating
- Unique Cabelcon PushPin™ system
- QuickMount™ - for easy installation
- Waterproof IPX8 - 30 meter/8 hours
- One-piece connector – no loose parts
- Fits standard RG11 and RG11 Quad cables
- Professional quality and excellent performance
Technical Data (Typical)
- Operational to 3 GHz
- Impedance 75 Ohm
- Shielding Eff. 30 - 3000 MHz 120 dB
- Transfer Impedance 5-30 MHz 0,1 mOhm
- Return loss 0.3 - 500 MHz (typ) 48 dB
- Return loss 500 – 1000 MHz (typ) 41 dB
- Return loss 1000 – 3000 MHz (typ) 31 dB
- IMD (3rd order@2x100mW) -130dBc
- IMD (IP3 value) +85 dBm
- AMP ratings 7.5A@10°increase 10.5A@20°increase
- Max. Tensile strength (overall) 450 N
Tool Required
- Use Code # 26628 (55-98029072)
