CYP v1.4 HDMI® Over x1 CAT5e/6 TRS.

Available: In Stock
Wishlist Compare
£125.99

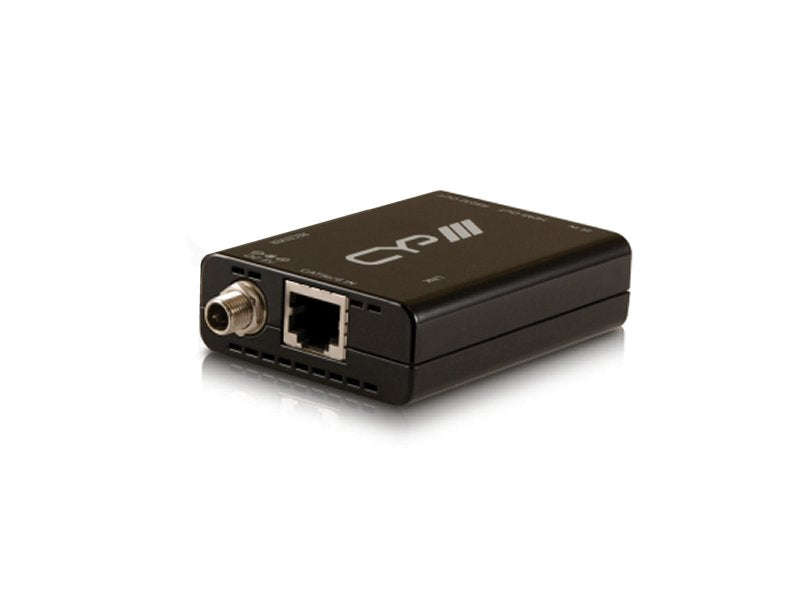

HDMI® Over x1 CAT5e/6 Transmitter

PU-513L-TX allows uncompressed HDMI, IR and RS-232 signals to be transmitted over a Single CAT5e/6 cable to distances of up to 60m.

Features

  • HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant
  • Supports HDMI 1.4 (including HDCP) over a single CAT5e/6 up to 60m
  • Complies with HDBaseT™- Lite specifications
  • Full HD resolution support (1080p@60Hz/36-bit), 3D over 60m, 4Kx2K over 40m and PC resolution support (VGA to WUXGA) over CAT5e/6 cable
  • HDMI input up to 15m with 8-bit deep colour, or 10m with 12-bit deep colour
  • Supports HDMI output up to 15m with 8/12-bit deep colour
  • Supports IR and RS-232 Control
  • Supports High Definition LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

Specification

Inputs Transmitter: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x RS-232] Receiver: 1x RJ45 [1x HDMI and Propriety Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
Outputs Transmitter: 1x RJ45 [1x HDMI and Propriety Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] Receiver: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x RS-232]
Power 5V/2.6A, DC (US/EU standards, CE/FCC/UL certified) each
Dimensions Transmitter: 52mm (W) x 52mm (D) x 18mm (H) Receiver: 54mm (W) x 54mm (D) x 20mm (H)
Gross Weight Transmitter: 84g Receiver:72g
Net. Weight 60g each

HDMI® Over x1 CAT5e/6 Transmitter

PU-513L-TX allows uncompressed HDMI, IR and RS-232 signals to be transmitted over a Single CAT5e/6 cable to distances of up to 60m.

Features

  • HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant
  • Supports HDMI 1.4 (including HDCP) over a single CAT5e/6 up to 60m
  • Complies with HDBaseT™- Lite specifications
  • Full HD resolution support (1080p@60Hz/36-bit), 3D over 60m, 4Kx2K over 40m and PC resolution support (VGA to WUXGA) over CAT5e/6 cable
  • HDMI input up to 15m with 8-bit deep colour, or 10m with 12-bit deep colour
  • Supports HDMI output up to 15m with 8/12-bit deep colour
  • Supports IR and RS-232 Control
  • Supports High Definition LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

Specification

Inputs Transmitter: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x RS-232] Receiver: 1x RJ45 [1x HDMI and Propriety Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
Outputs Transmitter: 1x RJ45 [1x HDMI and Propriety Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] Receiver: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x RS-232]
Power 5V/2.6A, DC (US/EU standards, CE/FCC/UL certified) each
Dimensions Transmitter: 52mm (W) x 52mm (D) x 18mm (H) Receiver: 54mm (W) x 54mm (D) x 20mm (H)
Gross Weight Transmitter: 84g Receiver:72g
Net. Weight 60g each
