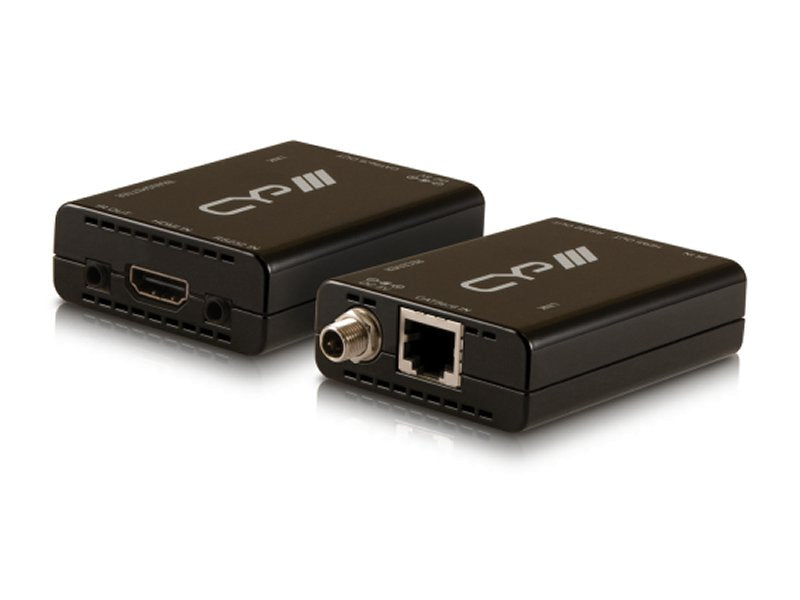

CYP Puma v1.4 HDMI Over x1 CAT5e/6 *KIT

HDMI® Over x1 CAT5e/6 *KIT*

v1.4 HDMI over Single CAT6 HDBaseT™ 5Play™ Transmitter and Receiver Set (100m) The PU-1109-KIT features 5Play HDBaseT™ technology. This will allow the user to distribute uncompressed HDMI, 2-Way IR, 2-Way RS-232, PoE and 3 individual LAN connections over a Single CAT6 cable, to lengths of up to 100m

Features:

• v1.4 HDMI, HDCP and DVI compliant.
• Supports HDCP repeater and CEC functions.
• Simultaneously sends uncompressed HD Audio and Video signals, plus IP network data over a single 100m CAT6 or 80m CAT5e cable.
• Resolutions supported: Uncompressed video up to 1080p 60hz, 48bit, plus 4K x 2K.
• HD audio supported: 7.1CH, Dolby TrueHD, DTS-HD.
• Ethernet speed up to 100Mbps.
• RS-232, IR, and HDMI CEC control pass through.
• Uses HDBaseT™ Technology.
• Uses 5Play Convergence for maximum distribution performance.
• Supports 3D signals.

Specification:

Inputs:

Transmitter: 1 x HDMI [HDMI Uncompressed AV and Data], 1 x 9pin Dsub [RS-232 Data], 1 x Stereo mini-jack [Infra Red Receiver], 1 x RJ45 [Ethernet (I/O) IP]. Receiver: 1 x HDMI (HDMI Uncompressed AV and Data), 1 x Stereo mini-jack [Infra Red Receiver], 1 x RJ45 [Ethernet (I/O) IP].

Outputs:

Transmitter: 1 x HDMI (HDMI Uncompressed AV and Data), 1 x RJ45 [HDMI and IP Propriety Data], 1 x Stereo mini-jack [Infra Red Emitter]. Receiver: 1 x HDMI (HDMI Uncompressed AV and Data), 1 x Stereo mini-jack [Infra Red Emitter], 1 x 9pin Dsub [RS-232 Data].

Power:

Transmitter: N/A. Receiver: 48V/1.35A, DC (US/EU standards, CE/FCC/UL certified)

Dimensions:

Transmitter: 141mm (W) x 127mm (D) x 40mm (H)
Receiver: 141mm (W) x 127mm (D) x 40mm (H)
Gross Weight: Transmitter: 780g. Receiver: 1280g
Net. Weight: Transmitter: 560g. Receiver: 1060g
