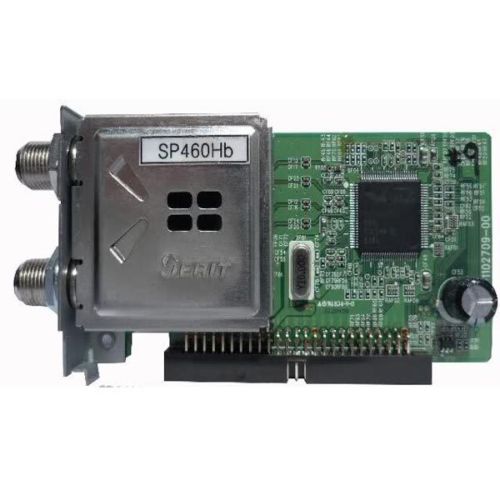

This is a Vu+ Uno Ultimo Plug and Play DVB-S/S2 Twin Tuner Module
This is a plug and play additional tuner for:
- Vu+ Uno
- Vu+ Ultimo
Dual tuner for satellite reception DVB-S/-S2
Frequency range: 950 to 2150 MHz
Input level: -65 to -25 dBm
Symbol rate: min: DVB-S/QPSK. 2 max. 45 MS / s
DVB-S2/QPSK: min. 10 - max. 30 MS / s
DVB-S2/8PSK: min. 10 - max. 30 MS / s
LNB control: horizontal 18 V, 13.5 V (500 mA) vertically
DiSEqC 1.0, 1.1, 1.2, 2.0,
Input and output: 2 x F connector IEC 164-2
