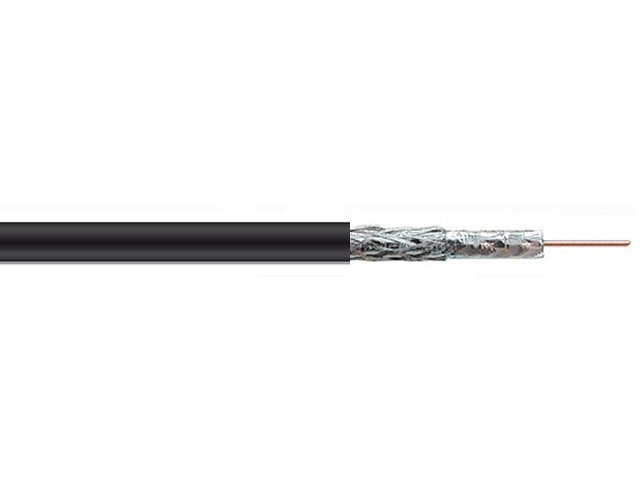

250m TRIAX 'FOAM' Domestic RG6 Black PVC
- Product SKU: 370766
- Category: PlutoDirect|Satellite & TV||PlutoDirect|Satellite & TV|Cable|Cable - Coax 1mm
250m TRIAX 'FOAM' Domestic RG6 Black PVC
- Double Screened Foil/Braid
- Copper Coated Steel Inter-Conductor
- Ideal for FM-DAB-UHF
- Ideal for Satellite - (Loss subject to length of cable run)
Specification
INNER CONDUCTOR - CCS
CONDUCTOR DIA. (+/-0.02MM) 1.020
MIN. BREAK STRENGTH (N) 640
INSULATION - FOAM P.E.
INSULATION DIA. (+/-0.01MM) 4.60
COLOUR NEUTRAL
CENTRICITY % =85
ADHESION 10 TO 100N @ 25MM
SHIELDING
WIDTH (MM) 17
THICKNESS AL-PET foil (Bonded) 17/12µm
FOIL OVERLAP (MM) =2
OUTER CONDUCTOR - AL WIRE BRAID
CONDUCTOR DIA. (+/-0.01MM) 0.120
NO. OF WIRES 64
COVERAGE (+/-3%) 40
PICKS/DM 20.0
LAY LENGTH (MM) 40
JACKET - PVC
OUTER DIA. (+/-0.01MM) 6.50
COLOUR BLACK, WHITE, BROWN
TENSILE STRENGTH =12.5 N/MM2
ELONGATION AT BREAK = 150%
MIN. BENDING RADIUS
INSTALLATION 27.4MM
REPEATED 75.5MM
MAX. PULLING TENSION 470 N
CRUSH RESISTANCE OF CABLE (LOAD 700N) < 1%
