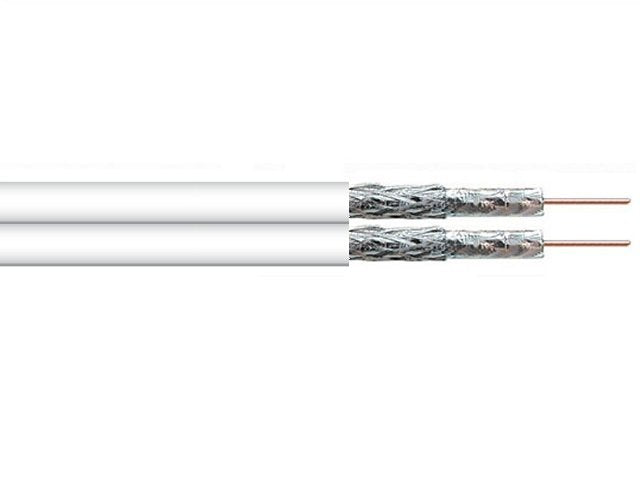

100m WEBRO 'FOAM' Domestic RG6 White TWIN

Available: In Stock
Wishlist Compare
£35.99

 Double Screened Foil/Braid

  • Copper Coated Steel Inter-Conductor
  • Ideal for FM-DAB-UHF
  • Ideal for Satellite - (Loss subject to length of cable run)

Construction

  • Inner conductor: Copper Clad Steel
  • Dielectric: Foam PE
  • Foil: ALU/P
  • Braid: ALU
  • Sheath: PVC

Mechanical Specifications

  • Center Conductor: 1.02mm CCS
  • Dielectric: Foam PE
  • Diameter over Dielectric: 4.8mm
  • Shield: AL/P Foil
  • Braid: 0.12mm x 64 AL wire
  • Sheathing Material: PVC
  • Diameter over Sheath: 6.80mm x 13.90mm

Electrical Specifications

  • Impedance: 75 Ohm
  • Capacitance: 16.2 pF/ft
  • Velocity Ratio: 83%
  • DC Resistance Conductor: 28 Ohm/1000ft
  • DC Resistance Shield: 19.3 Ohm/1000ft

Attenuation (db/1000ft) at (Each Leg)
