TRIAX HMX 4x4K HDMI® Matrix 4x4 *KIT* 100m
- Product SKU: 310004
- Category: PlutoDirect|Satellite & TV|HDMI||PlutoDirect|Satellite & TV|HDMI|HDMI Matrixes - Triax
Matrix
Includes 4 x 310002 'TRIAX HRX 1V Wall mount Receiver 100m HDMI Rx HDBaseT™ 5Play', these are supplied with this Matrix Switch as a kit.

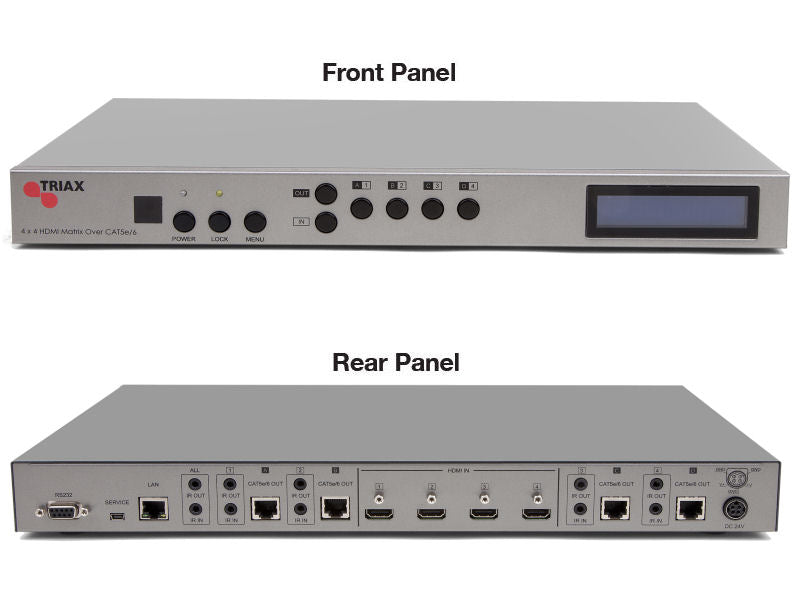

The HMX 4x4K is a 4 by 4 HDMI Matrix switch that converts the HDMI source signals to CAT5e/6/7.
With resolutions up to 1080p Full HD, 1920x1200@60Hz and multichannel digital audio supplied by up to four High-definition sources to any of the eight CAT5e/6/7 outputs. It supports digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD. The HMX 4X4K is also compatible with 3D content and can be displayed on a 3DTV, a 3D Source will be required.
The HMX 4X4K allows four HDMI sources to be independently controlled and distributed to eight Sink (TVs) displays up to 100 meters away along with IR signals and POE to power the Receivers and Ethernet (Internet).
APPLICATIONS:
- HDMI System controls
- Video/TV wall display and control
- Security surveillance and control
- Commercial Signage advertising, displaying and control
- Lecture room display and control
- Superstores, Supermarket Signage and CEC control
- Residential Markets
Matrix
Includes 4 x 310002 'TRIAX HRX 1V Wall mount Receiver 100m HDMI Rx HDBaseT™ 5Play', these are supplied with this Matrix Switch as a kit.
The HMX 4x4K is a 4 by 4 HDMI Matrix switch that converts the HDMI source signals to CAT5e/6/7.
With resolutions up to 1080p Full HD, 1920x1200@60Hz and multichannel digital audio supplied by up to four High-definition sources to any of the eight CAT5e/6/7 outputs. It supports digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD. The HMX 4X4K is also compatible with 3D content and can be displayed on a 3DTV, a 3D Source will be required.
The HMX 4X4K allows four HDMI sources to be independently controlled and distributed to eight Sink (TVs) displays up to 100 meters away along with IR signals and POE to power the Receivers and Ethernet (Internet).
APPLICATIONS:
- HDMI System controls
- Video/TV wall display and control
- Security surveillance and control
- Commercial Signage advertising, displaying and control
- Lecture room display and control
- Superstores, Supermarket Signage and CEC control
- Residential Markets
