CYP Puma RS232 Control Over x1 CAT5 *KIT*
- Product SKU: PU-232
- Category: PlutoDirect|Satellite & TV|HDMI||PlutoDirect|Satellite & TV|HDMI|Audio - Video|Video Products - Various
Previously known as the CRS-232TXRX.

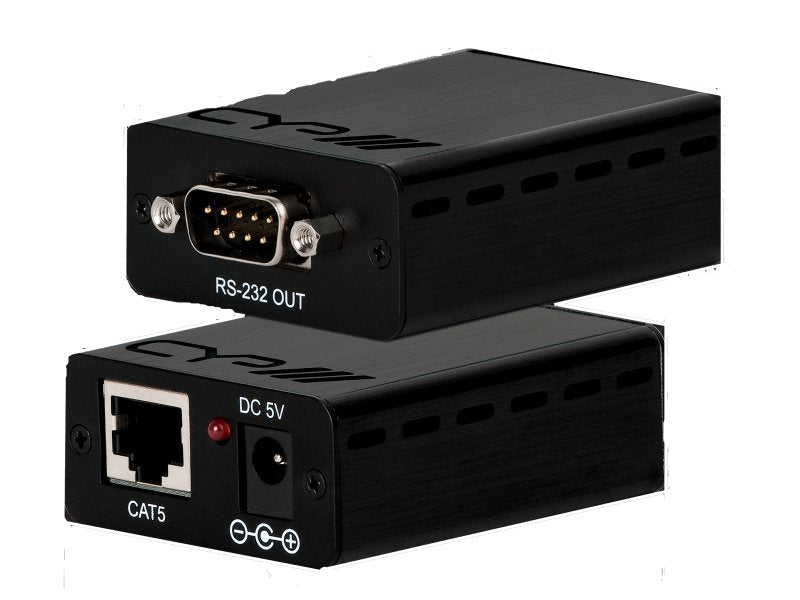

The CAT5 RS-232 extender is an affordable, hardware-based solution providing control of any RS-232 protocol device. This transmitter and receiver set will extend the control of RS-232 for over 250 meters. The RS-232 extender also provides full duplex transmission and hardware handshake signals, with no need for any set up or configuration.
Features
Extends any RS-232 compliant device up to 250 metres from the source to display.
Requires only one CAT5/6 cable.
Perfect for digital signage applications.
Baud Rate: 110~921600. Data bit: 8bit.
Simple installation and operation.
Specification
Inputs 1 x RS-232 D-Sub-9 female. 1 x CAT5/6
Outputs 1 x RS-232 D-Sub-9 female. 1 x CAT5/6
Power 2 x 5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions 50mm (W) x 61mm (D) x 23mm (H) each
Gross Weight 380g
Net. Weight 260g
Previously known as the CRS-232TXRX.
The CAT5 RS-232 extender is an affordable, hardware-based solution providing control of any RS-232 protocol device. This transmitter and receiver set will extend the control of RS-232 for over 250 meters. The RS-232 extender also provides full duplex transmission and hardware handshake signals, with no need for any set up or configuration.
Features
Extends any RS-232 compliant device up to 250 metres from the source to display.
Requires only one CAT5/6 cable.
Perfect for digital signage applications.
Baud Rate: 110~921600. Data bit: 8bit.
Simple installation and operation.
Specification
Inputs 1 x RS-232 D-Sub-9 female. 1 x CAT5/6
Outputs 1 x RS-232 D-Sub-9 female. 1 x CAT5/6
Power 2 x 5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions 50mm (W) x 61mm (D) x 23mm (H) each
Gross Weight 380g
Net. Weight 260g
