MUXLAB Stereo AV + IR Over x1 CAT5e Balun
- Product SKU: 500048
- Category: PlutoDirect|Satellite & TV|HDMI||PlutoDirect|Satellite & TV|HDMI|Audio - Video|Audio/Video Over x1 UTP
MUXLAB Stereo AV + IR Over x1 CAT5e Balun
*Single unit but use as a PAIR
The Stereo AV/IR Pass-Thru Balun allows one composite video, one stereo audio and one IR emitter signal to be transmitted via a single Cat5E/6 cable in a point-to-point connection.
The Stereo AV/IR Pass-Thru Balun features full audio bandwidth response for high fidelity applications and features built-in colour-coded cable leads for ease of installation.

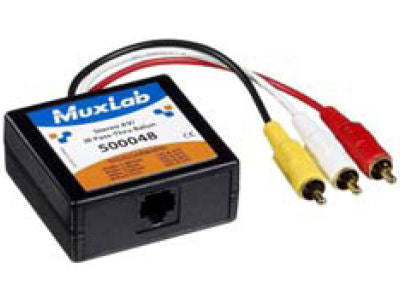

IR connection not shown in picture (2-wire)
The Stereo AV/IR Pass-Thru Balun also works in conjunction with third party IR Remote Control equipment allowing the IR Emitter to connected the IR control module using the same Cat5E/6 cable as video and audio for more cost-efficient cabling.
Some of the applications are; classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing, and video kiosks.
Features and Benefits
- Video up to 2,200 feet (670m) via Cat 5E/6
- Audio up to 3,250 ft (990m) via Cat5E/6
- 20 Hz to 20 kHz audio bandwidth
- IR 2-wire emitter pass-thru on fourth twisted pair
- Built-in colour-coded cable leads
