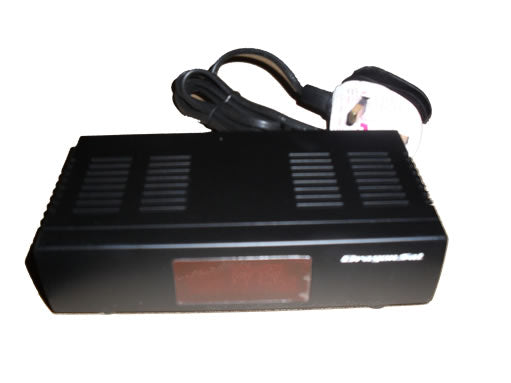

Dragonsat Universal RF Modulator (Scart to RF adapter)

Available: In Stock
Wishlist Compare
£19.00

Convert a scart socket into RF out - Ideal for satellite receivers with no RF out such as VU+, Xtrend, Duolabs and Dreambox, makes it easy to distribute the TV signal around the house to bedrooms/kitchen etc.

This is a universal high quality RF Modulator. It has a digital channel display, two RF connections (one in and one out) a Scart and video and audio phono connections.

Easy to set up, it simply plugs into the TV's existing coax/RF socket. There are channel up and a channel down switches on the bottom which allows the AV signal to be viewed on TV channels that you choose covering TV channels 21 to 69. The digital display tells you which channel is currently selected. This means that the output (whatever the source) can be viewed on TVs without a spare Scart socket or without any Scart socket at all.



Specification:

  • UHF E21~E69, VHF E1~E12
  • PAL B/G, I, D/K, L
  • RF Output Channels: 1-69 with all Cable Channels; 50-860 MHz/PAL
  • Professional picture quality and no significant hamonics in band
  • 2 digits LED can display the TV system, output channel, loading or non-loading status
  • Last program memory locks and holds in case of power-off
  • Compatible with all digital channels
  • Spurious emissions : 20 dBuV typical in all bands
  • Easy installation and operation, test-bar ( signal ) built-in
  • Audio Output Frequency: 4.5 5.5 6.0 6.5 MHz (Press two buttons simultaneously for 3 sec to enter AUDIO MODE and next Press any button to change audio frequency; back to NORMAL MODE after reset (Power down and up)).
  • RF Output Level: 70 +/- 3dBuV
  • RF Output Impedance: 75 ohm
  • Video Input Impedance: 75 ohm
  • Audio Input Impedance: 13 Kohm
  • TV to ANT Insertion: 2dB
  • Inputs: 2x RCA, 2x RF, SCART
  • Power Supply: AC 230V
  • Applications:
  • Distributes AV programs to all TV sets from the main TV set
  • Converts SAT/DTT ( tdt ) / DVD ... programs to RF ( TV ch. ) for home MATV network
  • Converts CCD camera signal to an additional TV channel for home security
