CYP Puma HDBaseT™ LITE Repeater to 60m

HDBaseT™ LITE Repeater to 60m

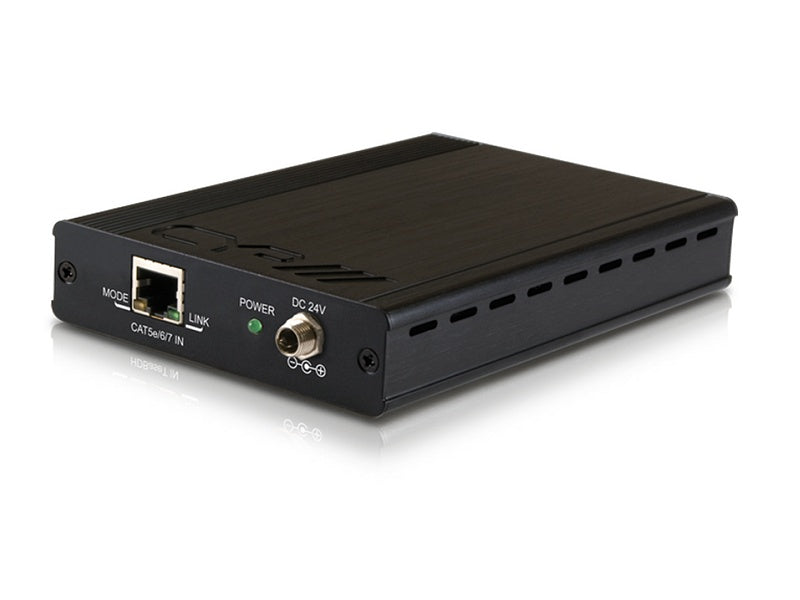

The PU-HBTL-EX repeater is designed to extend the signal transmission distances of CYP HDBaseT™ LITE Extender sets and Matrix systems by allowing the user to repeat HDBaseT™ LITE signals a further 60m over CAT5e/6/7 cable. This device features 3-Play™ functionality, including the highest quality 4K2K uncompressed HD video, uncompressed multi-channel audio, bi-directional IR control and RS-232 signals. This Repeater is designed to be used with the PU-513L-KIT and the PU-514L-KIT point-to-point Extender Kits, and with any CYP HDBaseT™ LITE Matrix system (PU-8H8HBTL / PU-424HBTL-KIT / PU-44XL-KIT).
The PU-HBTL-EX can also be cascaded twice to achieve a maximum of 180m transmission distance.

• Uncompressed video support up to 1080p@60Hz/36-bit and 4k×2K (Ultra HD)
• HDMI, DVI and HDCP compliant
• Common supported resolutions : HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24, 4Kx2K; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA
• Audio support up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
• Supports 3D over HDMI and 4k×2k (Ultra HD) resolution
• Supports CEC bypass
• Supports 3-Play Convergence : Full uncompressed HD Video, Audio and Controls (IR and RS-232) over a single CAT5e/6/7 cable
• Supports 2.25Gbps Frequency Clock per channel (225MHz Clock Rate)

Inputs 1x RJ45 [1x HDMI and Propriety Data]
Outputs 1x RJ45 [1x HDMI and Propriety Data]
PSU: 24V/1.25A
Dimensions 100mm [W] x 155mm [D] x 30mm [H]
Net Weight 340g
